Grid Deck Vibratory Tables

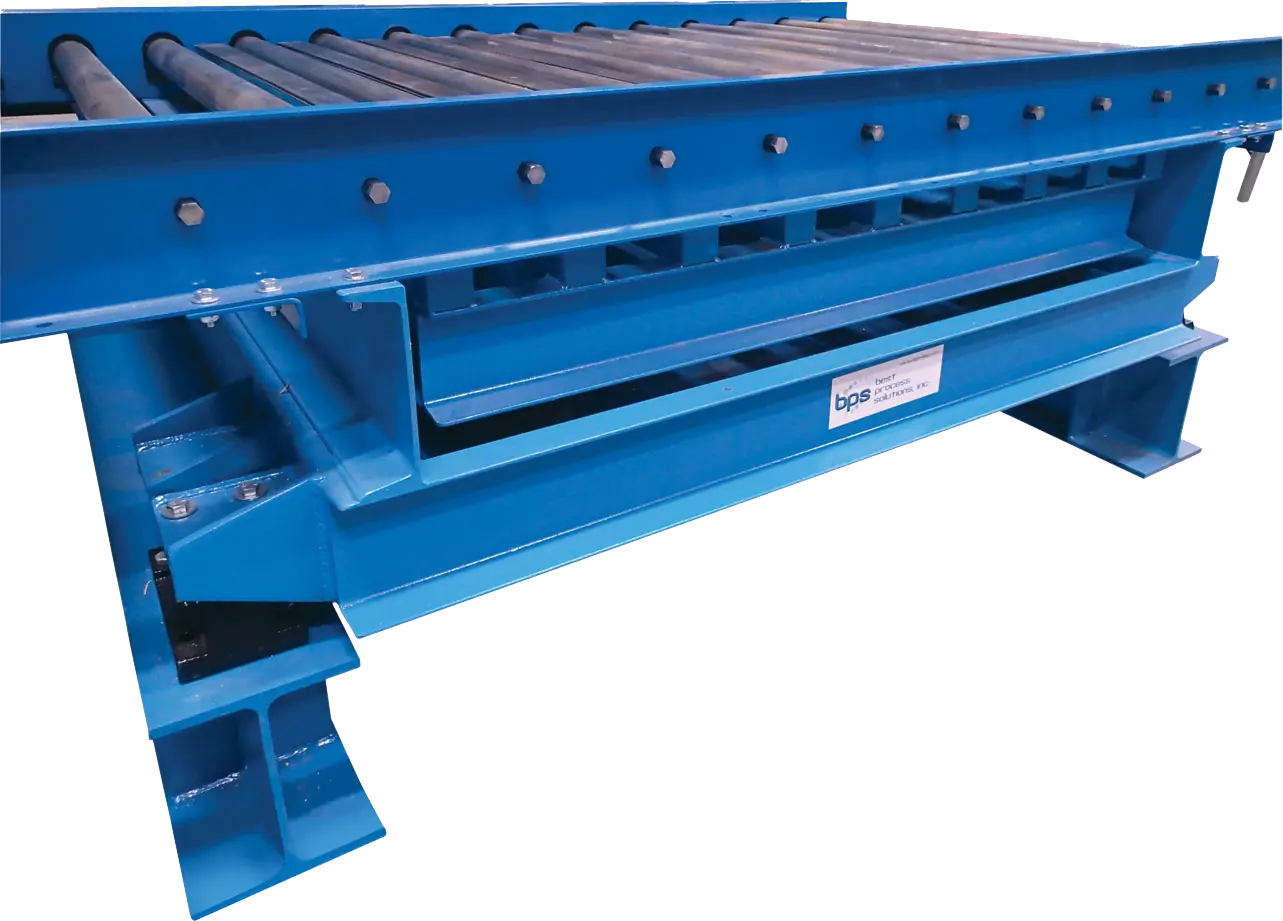

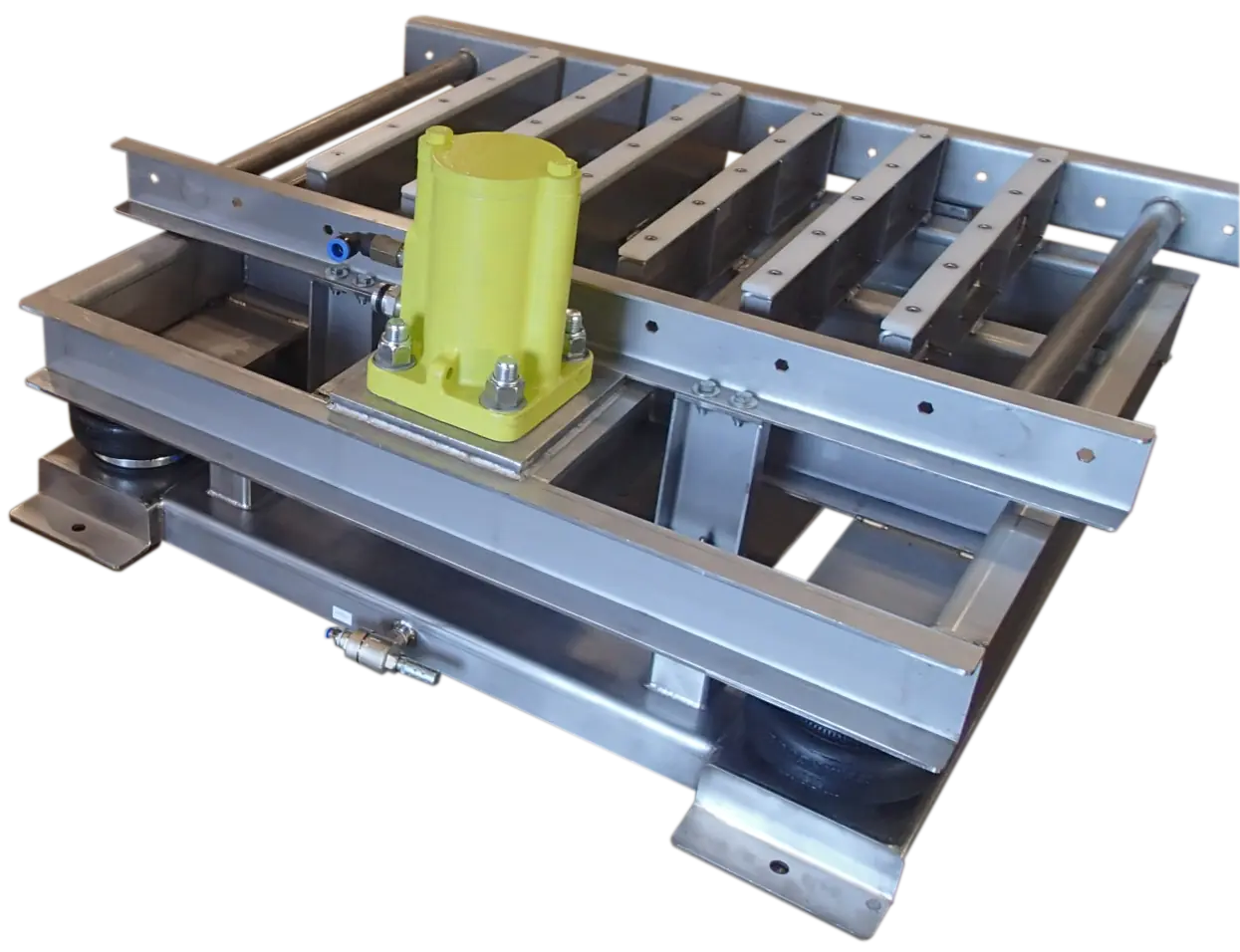

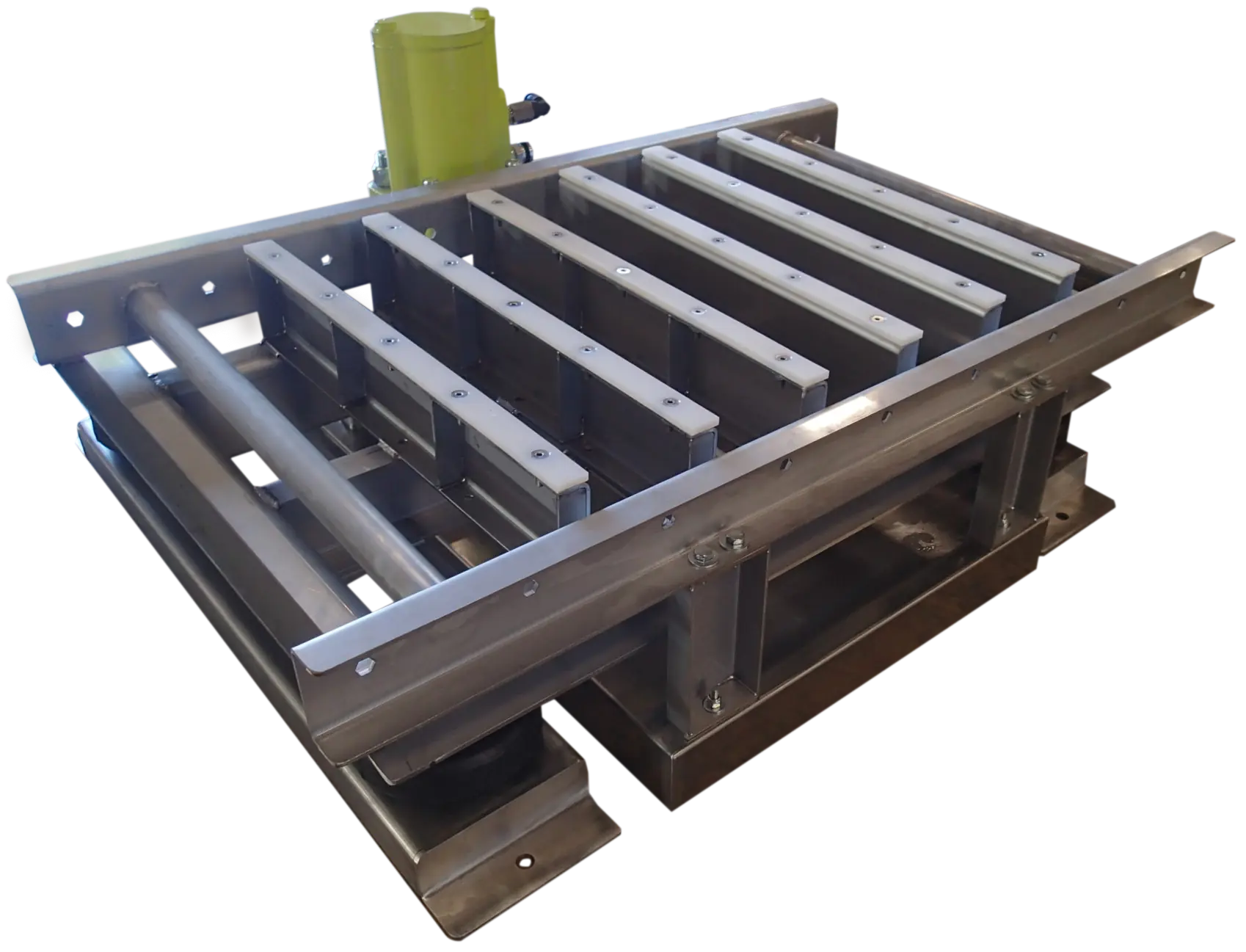

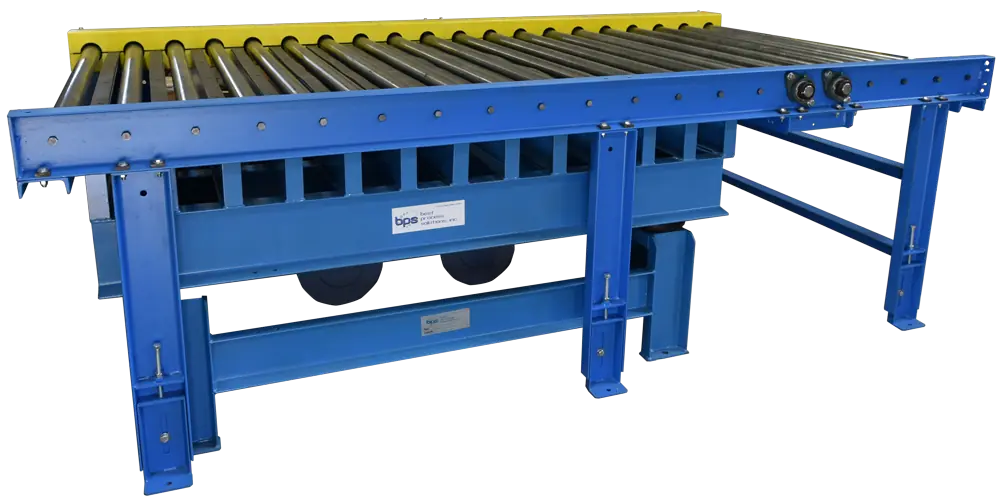

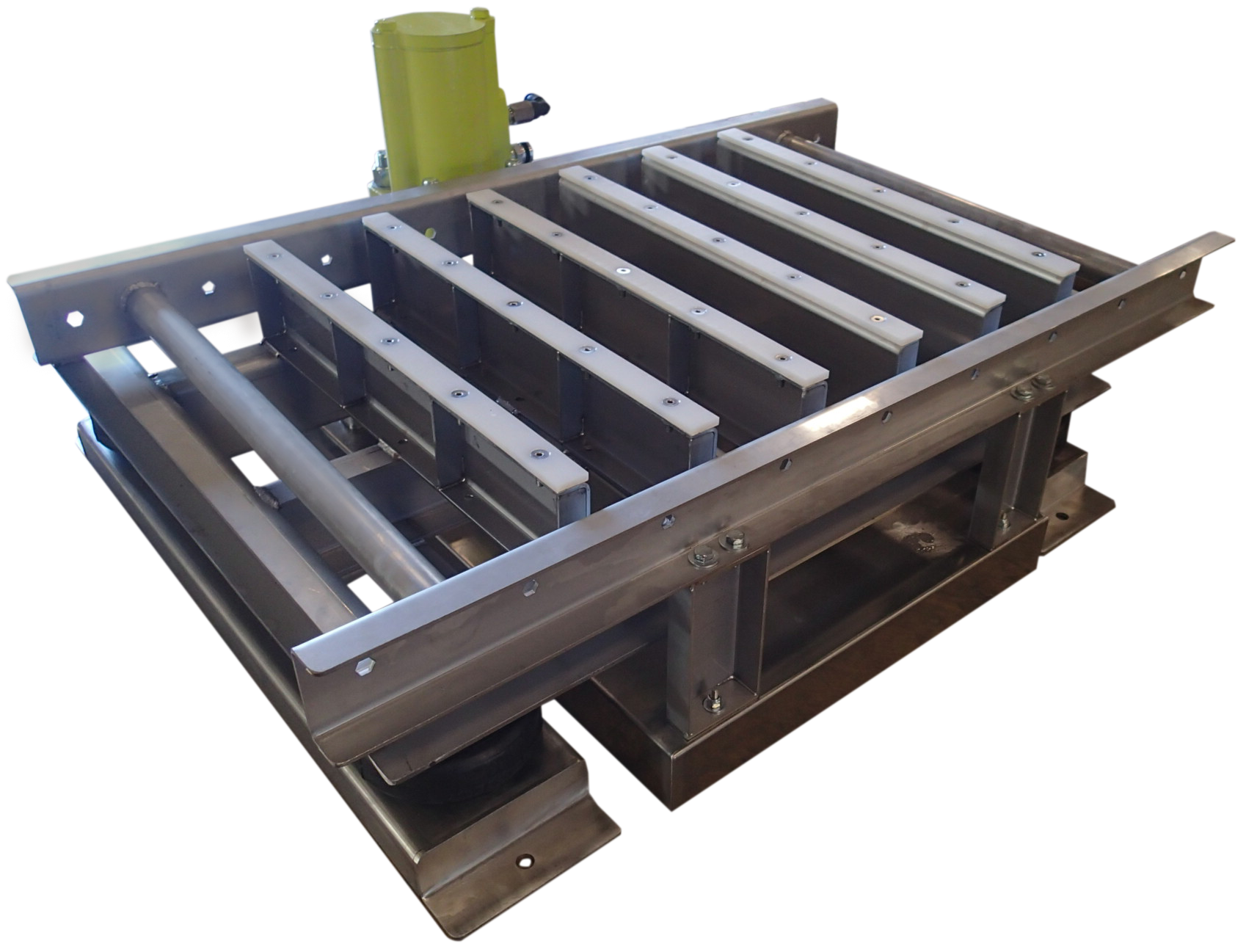

The BPS Model VG (Vibratory Grid Deck) is able to lift and vibrate material between the rollers of a roller conveyor.  As the material is conveyed down the conveyor, this can be a densification station and can be automatically or manually operated. Our electric GF tables can be operated at 230v/480v. Other voltages are available upon request (example: 380v, 415v, 575v).  When power requirements are limited, we also offer a variety of Air Piston Flat Decks as well.

Technical Design

What Are Grid Deck Vibrating Tables?

Grid Deck Vibrating Tables are specialized equipment featuring a grid-style surface that enhances airflow and supports better compaction for materials that need precise settling. These tables are perfect for handling bulk containers, molds, or irregularly shaped items. As a key component of bulk processing equipment, their unique design ensures even vibration distribution, making them an excellent choice for industries like construction, packaging, and manufacturing.

Applications of Grid Deck Vibrating Tables

Grid Deck Vibrating Tables are widely used in industries such as packaging, concrete molding, and bulk material handling. Common applications include settling bulk materials in bins or cartons, removing air pockets from poured concrete, and compacting powders or granules for uniformity. These tables, as part of bulk processing equipment, improve product stability, reduce waste, and streamline material handling processes.

Advantages of Grid Deck Vibrating Tables

The grid-style design of these vibrating tables provides several advantages, including better airflow, precise vibration control, and superior compaction. They are particularly effective in applications where materials require additional aeration or where irregular shapes need consistent settling. With adjustable vibration intensity, these tables deliver optimal performance for a wide range of materials and applications, making them an essential tool in bulk processing equipment setups.

Custom Grid Deck Vibrating Table Solutions

At BPS, we offer fully customizable Grid Deck Vibrating Tables to meet your unique requirements. From grid spacing to load capacity and vibration frequency, our solutions are tailored to fit your workflow and material handling needs. Whether you need a table for compacting heavy materials or ensuring uniformity in delicate products, our team will design a solution that integrates seamlessly with your bulk processing equipment, maximizing efficiency and productivity.

Get A Quote

Use our contact form to get a quote or call BPS at 330-220-1440

FAQ

Frequently Asked Questions

What materials are best suited for Grid Deck Vibrating Tables?
Arrow
What materials are best suited for Grid Deck Vibrating Tables?
How do Grid Deck Vibrating Tables improve material handling?
Arrow
The grid-style deck design allows for better air circulation and even vibration distribution, ensuring that materials settle uniformly and efficiently.
What maintenance do Grid Deck Vibrating Tables require?
Arrow
Regular maintenance includes cleaning the grid deck, inspecting the motor and vibration mechanisms, and checking for secure connections to ensure reliable performance.
Are Grid Deck Vibrating Tables customizable for specific operations?
Arrow
Yes, BPS offers a range of customization options, including grid spacing, vibration intensity, and load capacities, to meet specific industrial requirements.
